Industrial Development
Plant 2 — Planning, approval, and visual articulation
Official Approval
This industrial food facility is built on planning clarity before anything else: mass distribution, service movement, production-line alignment, and reading MODON requirements as a design framework rather than an approval checkbox.
- → Location
- Jeddah Industrial City 1
- → Type
- Industrial Food Facility
- → Approval
- MODON — Approved
- → Consultant
- MABS Adv. Tech. Engineers
Project views

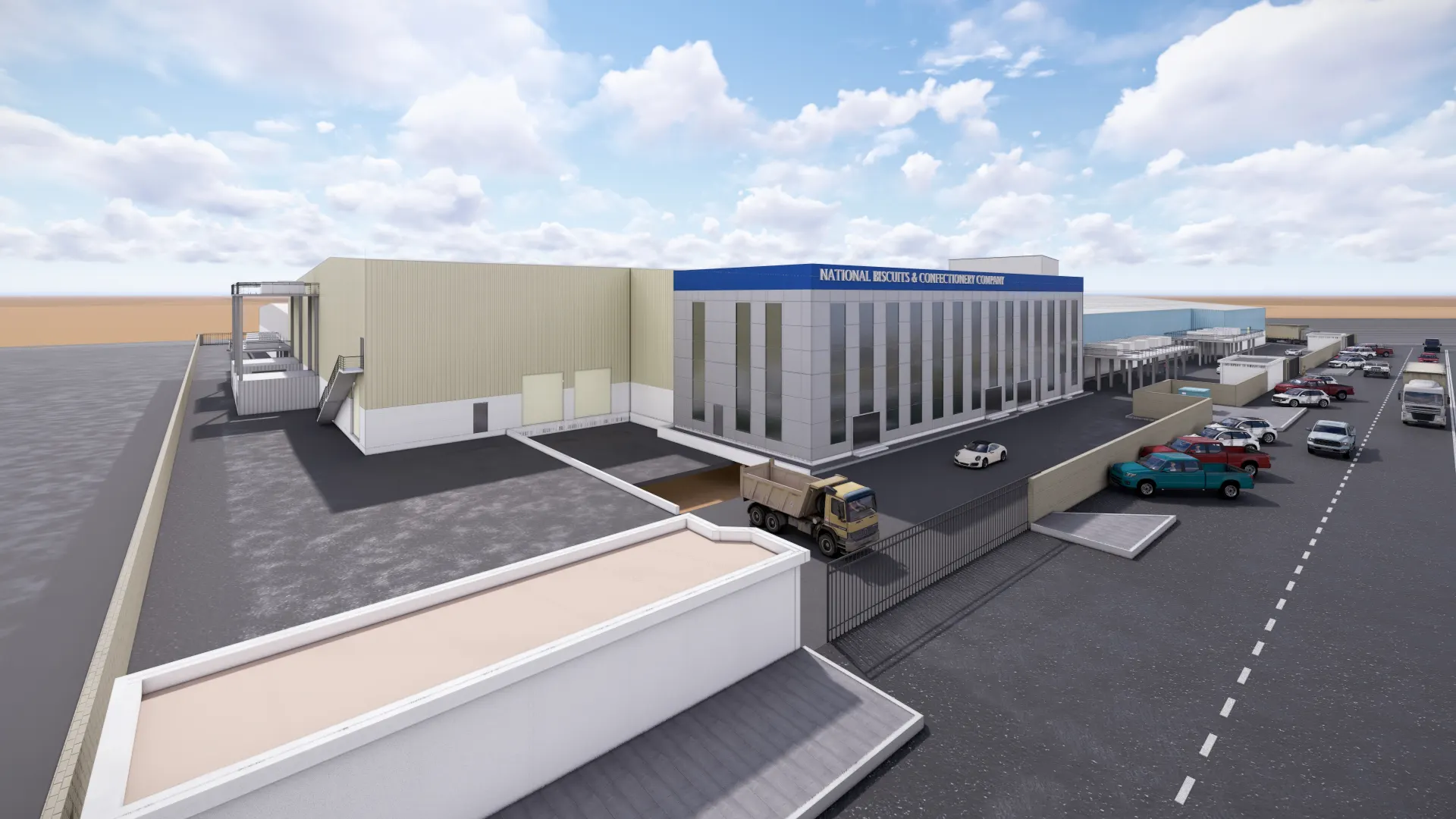

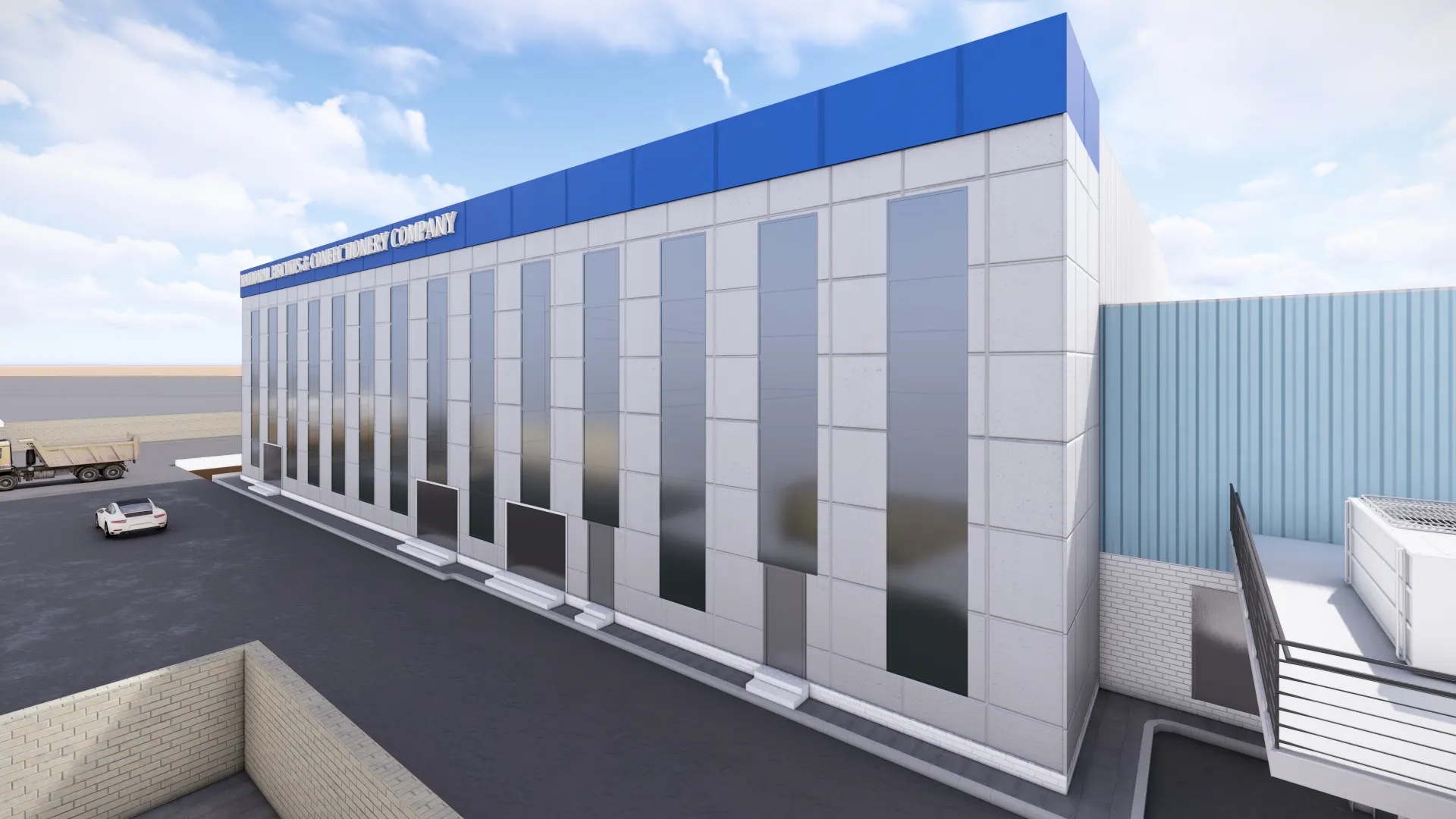

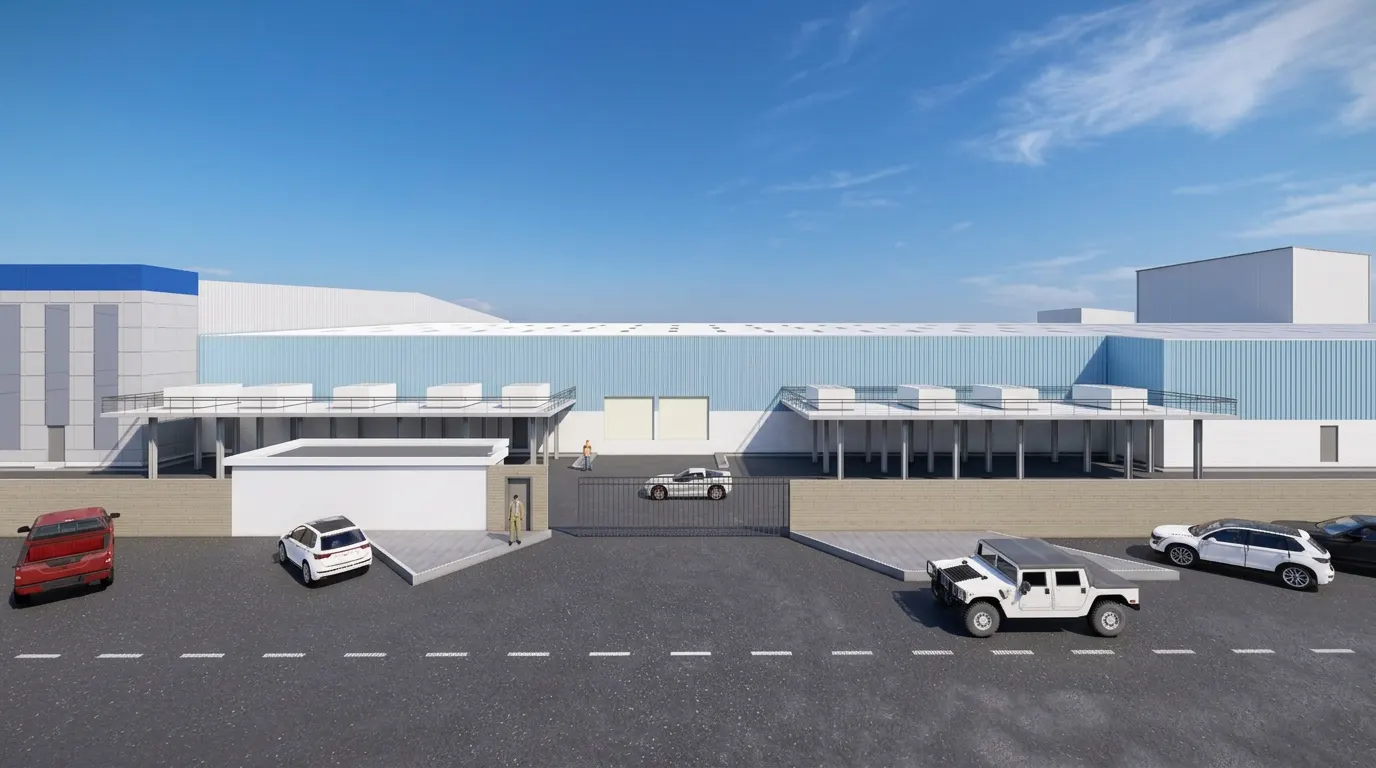

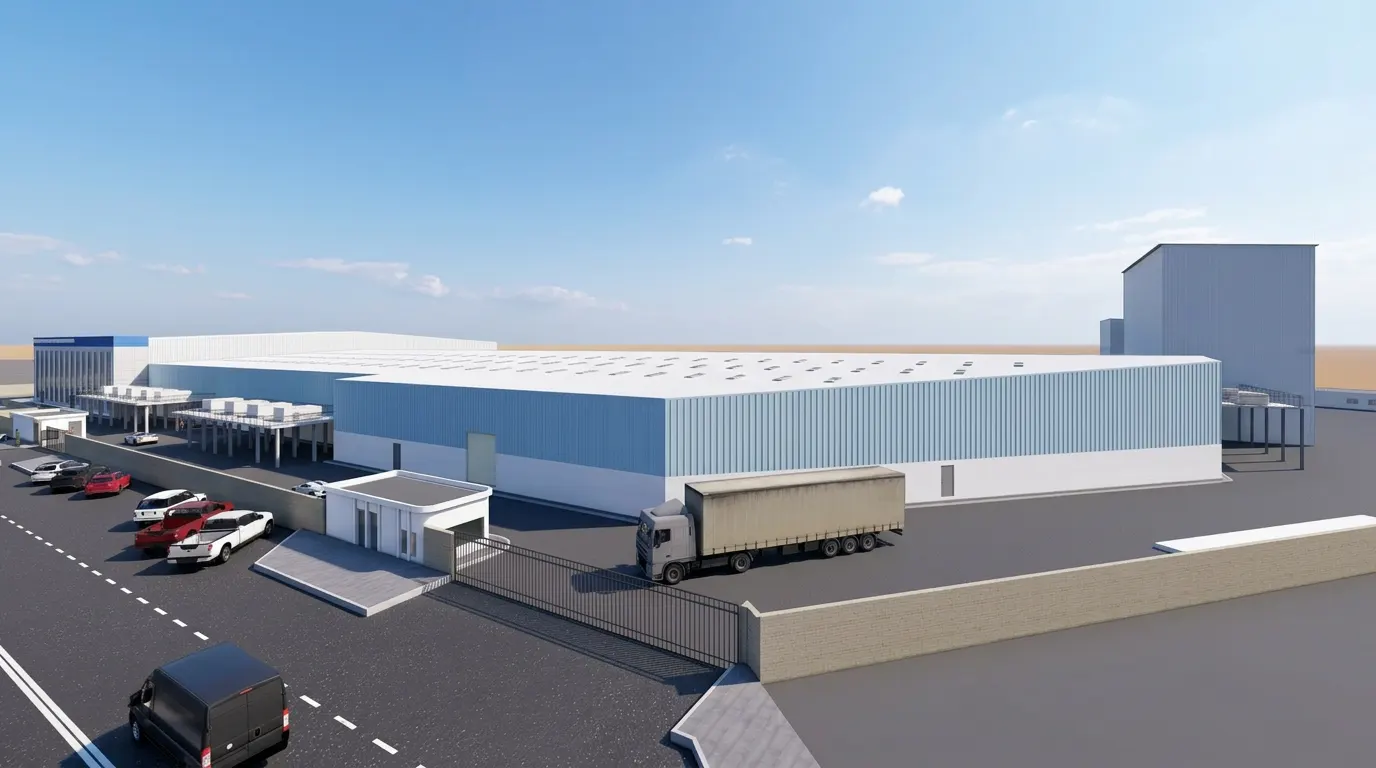

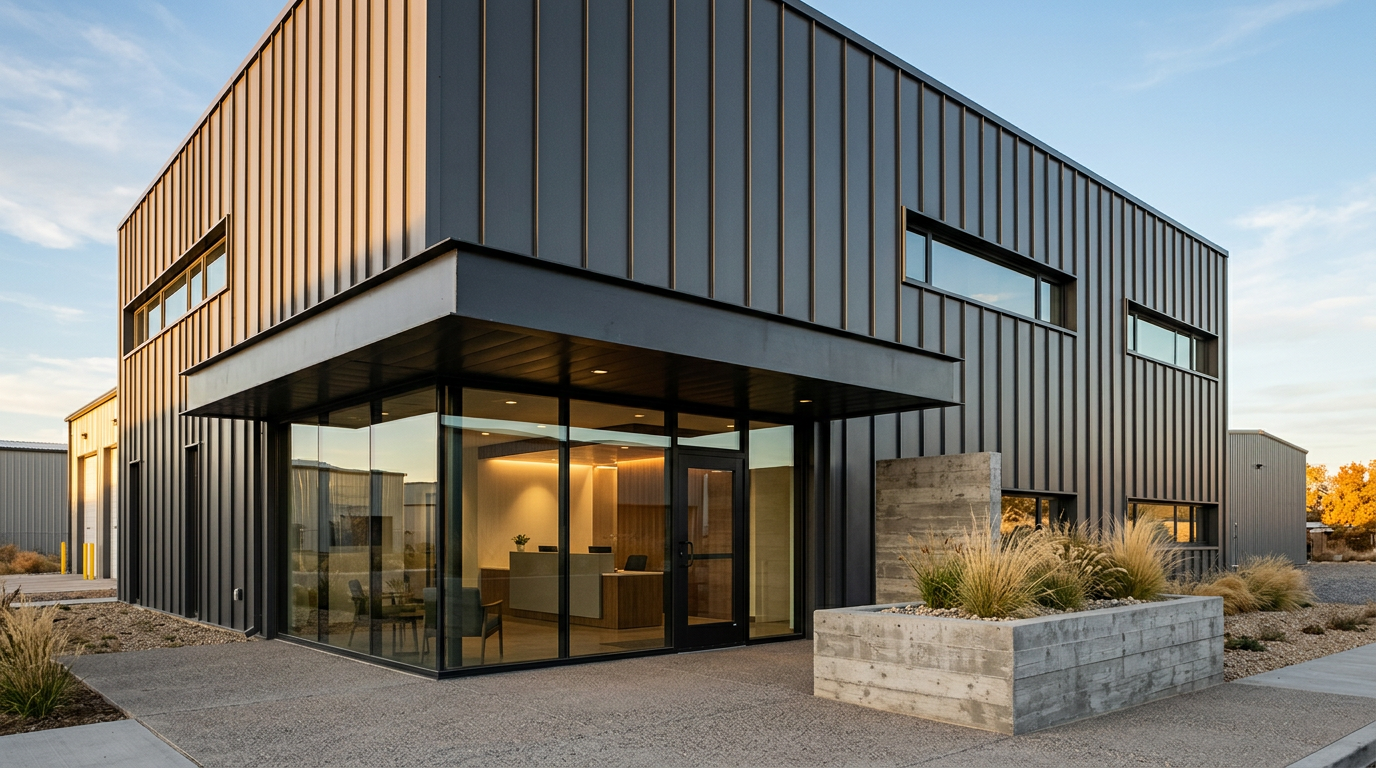

Production massing, façade, and administrative arrival
Land Utility
Share- Total Lot Area
- ~38,400 m²
- 100%
- Total Built Area
- ~27,500 m²
- ~72%
- Production Building
- ~14,300 m²
- ~52%
- Storage / Hangar
- ~11,500 m²
- ~42%
- Setbacks & Asphalt Roads
- ~9,300 m²
- ~24%
- Building Height
- ~13.4 m
- —
Case Study
Overview
A MODON-approved food production facility in Jeddah Industrial City 1, developed to align operational logic with regulatory clarity and clean architectural expression.
Key Contributions

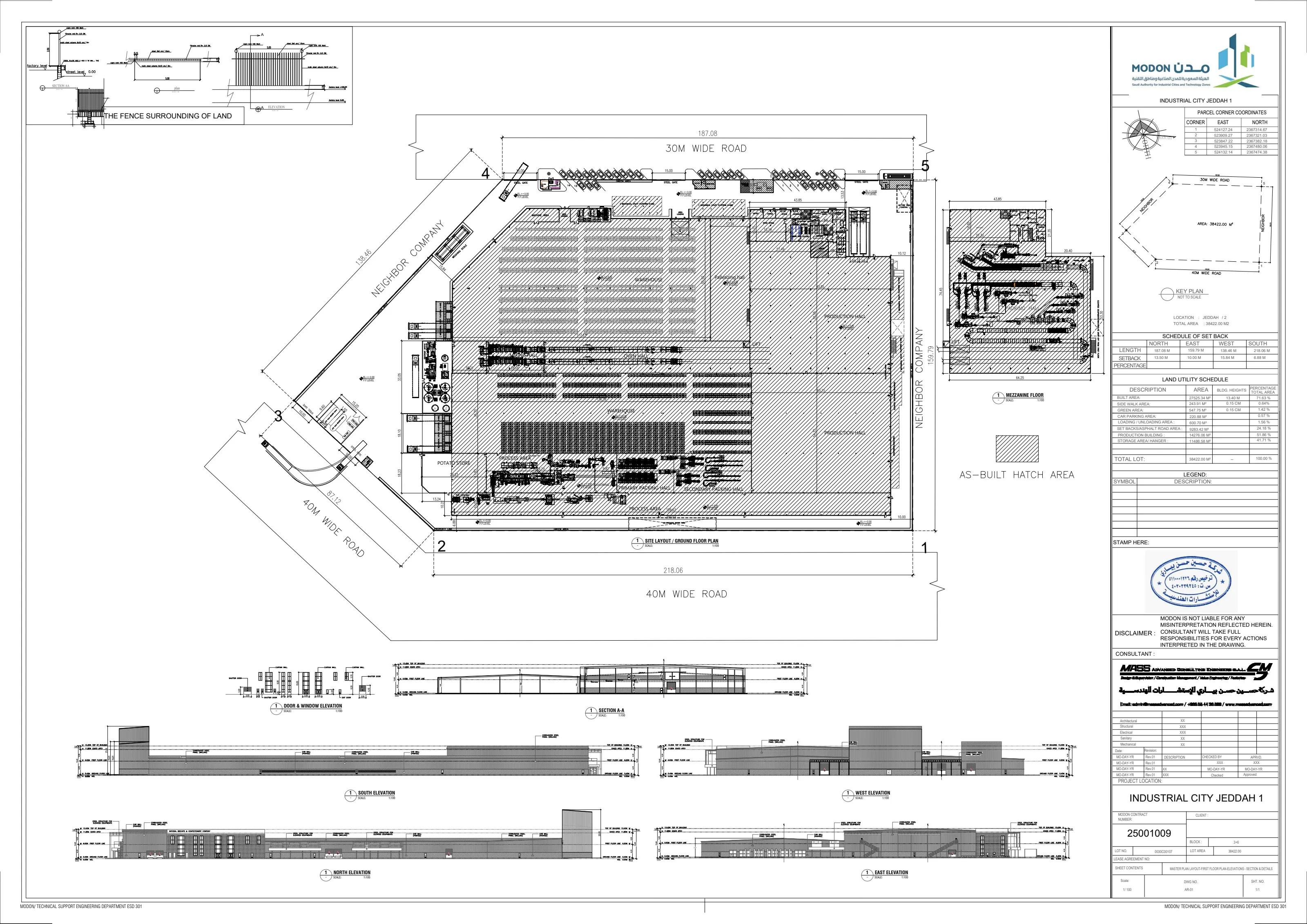

- ·Coordinated the master layout against MODON requirements
- ·Analysed setbacks, land use, and occupancy ratios
- ·Developed architectural views for the facility, façade, and admin arrival
- ·Aligned the package with European suppliers and production lines
- ·Prepared materials supporting both technical review and approval flow
Outcome / Value
A clearer industrial package with approved layout logic and a stronger connection between production planning, operational access, and architectural presence.
- Role
- Architect — layout coordination, approval support, and visualization
- Scope
- Site planning, land-use analysis, production and service mass coordination, supplier alignment, and review-ready presentation material.
